More dtv2ser+usb PCBs and a new KeyboardTwister

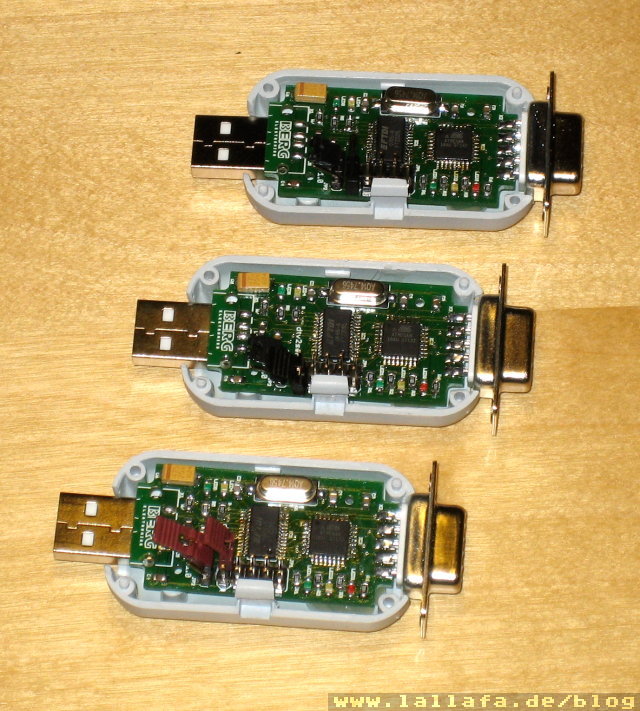

Finally I got all parts for the dtv2ser+usb boards including the missing USB connector. Actually a type A female connector was placed on the layout but it is less common. By mounting a type A male connector on the lower side of the PCB upside down I was able to replace the female connector with the more common version. Now the board really looks like a USB stick:




As you can see three of the nine boards are already finished and tested, but unfortunately they are already assigned: bottom is mine, the middle and top ones are for my fellow VICEplus developers nojoopa and TLR. So only six boards left of the prototype run…

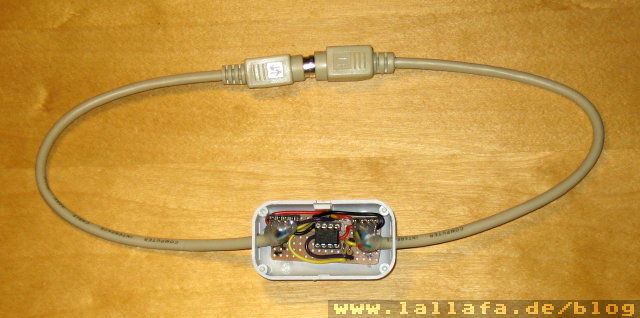

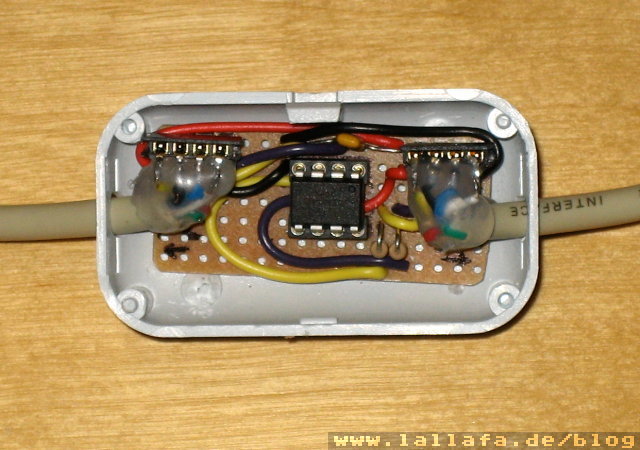

For pcollins from Forum64 I also built a new KeyboardTwister variant for his DTV:

So, enough hardware building for now… Now I’ll focus on the software part again and finish dtv2ser 0.2 – the new release with dtv2ser+usb support…
